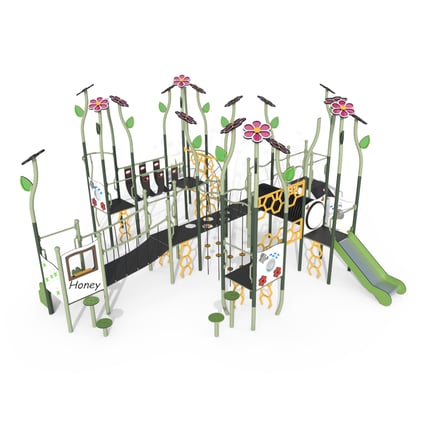

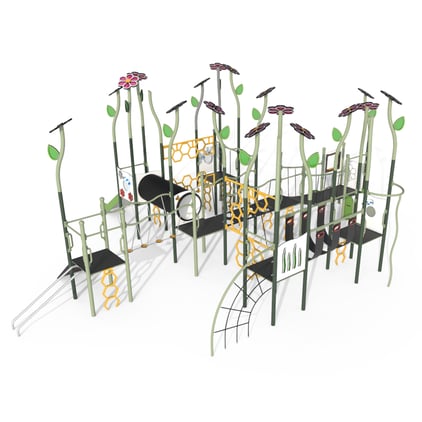

Playset FLORO 8-1

The FLORO 8-1 Playset is a modern nature-inspired playground set that combines attractive design with high functionality and durability. The set includes, among other features, transparent decorative elements: 16 flowers (96 pink petals) and 16 green leaves, eight towers with platforms, four bridges between the platforms, one tunnel, a straight slide, a handrail slide, and six sensory panels, including four with wheels that emit colourful light when set in motion.The structure is made of S235 steel protected against corrosion by galvanizing and powder coating. Slides made of stainless steel.

• 32 structural tubes
• transparent decorative elements: 16 flowers (96 pink petals) and 16 green leaves
• 8 towers with platforms
• 1 access step
• 1 straight slide
• 1 handrail slide
• 1 bridge made of rubber belts
• 1 rope bridge
• 1 rubber bridge with 6 cube-shaped openings
• 1 chain bridge with four cube-shaped stepping platforms
• 1 climbing ramp with 6 openings
• 1 fireman’s pole
• 1 rope climbing net
• 6 honeycomb-shaped climbing ladders
• 3 panels with a transparent window, decorative elements (watering can and flowers), and wheels that emit colourful light when set in motion (5 blue wheels)
• 1 panel with 4 transparent grass-shaped windows
• 1 panel with flower-shaped cut-outs and wheels that emit colourful light when set in motion (5 green wheels)
• 1 panel/wall with a counter and the word “Honey”
• 1 tunnel
• 1 rope passage between the platforms (4 ropes with 8 stepping discs)
• 4 mushroom-shaped stepping elements for walking, climbing and descending

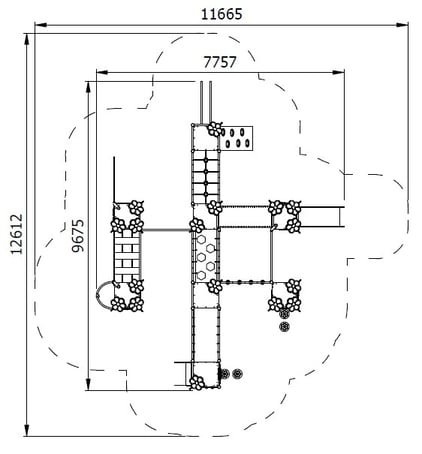

• Dimensions (LxWxH): 7,76 x 9,68 x 3,98 m
• Safety area (LxW): 11,67 x 12,62 m
• Maximum fall height: 2,11 m
• Age group: 3+
• Number of users: 42
• Dimensional tolerance: ±5%

• Structure made of galvanized and powder-coated S235 steel, with tubes measuring 76.1 mm in diameter and 2 mm in wall thickness,
• Flowers and leaves made of 15 mm thick HDPE and 3 mm thick fluorescent plexiglass. The leaves feature 8 mm thick tinted plexiglass,
• Watering can panel made of 15 mm thick HDPE, with a central window made of 5 mm thick transparent polycarbonate featuring illuminated LUMO wheels,
• Grass panel made of 15 mm thick HDPE, with a central window made of 8 mm thick tinted plexiglass,
• Black platforms made of 10 mm thick HPL Hexa,
• Entrance ladders (honeycomb-shaped) made of S235 steel, 30 × 30 mm, with a wall thickness of 2 mm, powder-coated,
• Climbing rope net made of reinforced black polypropylene rope, 16 mm in diameter, with connectors made of plastic and aluminium. The ropes are UV-resistant and flame-retardant,
• Bridge between the platforms made of 10–12 mm thick EPDM rubber with 6 cube-shaped openings finished with panels; reinforced black polypropylene ropes, 16 mm in diameter, with aluminium connectors,
• Steel handrails, 33.7 mm in diameter and 2 mm in wall thickness,
• Mushroom-shaped stepping elements for access, made of 15 mm thick HDPE; posts made of galvanized and powder-coated S235 steel, 76.1 mm in diameter and 2 mm in wall thickness; stepping plates made of 15 mm thick HDPE with a milled pattern,
• Climbing ramp made of 10–12 mm thick EPDM rubber,
• Tunnel connecting the towers made of black corrugated polypropylene pipe with an outer diameter of approximately 68 cm,
• Slide made of 1.5 mm thick stainless steel sheet, with side panels made of 15 mm thick HDPE,
• Rope passage between the platforms made of reinforced polypropylene ropes, 16 mm in diameter, and 15 mm thick HDPE stepping discs,
• Access steps made of 15 mm thick HDPE; posts made of galvanized and powder-coated S235 steel, 76.1 mm in diameter and 2 mm in wall thickness; stepping plates made of 15 mm thick HDPE with a milled pattern.

All imager are for illustartive purposes only and may vary from the actual product.
