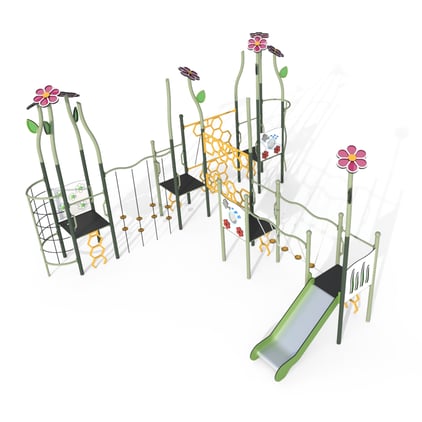

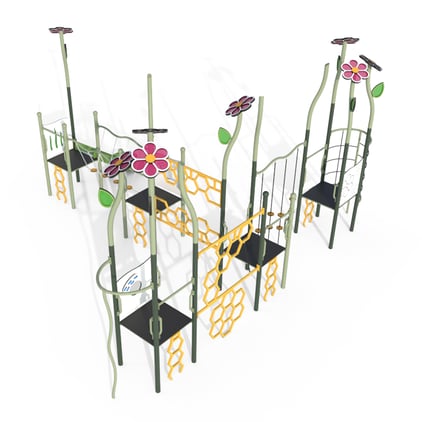

Playset FLORO 5-1

The Floro 5-1 Playset is a modern nature-inspired playground set that combines attractive design with high functionality and durability. The set includes, among other features, transparent decorative elements: 8 flowers (48 pink petals) and 8 green leaves, five towers with platforms, a straight slide, a chain bridge with four cube-shaped stepping platforms, a rope passage between the platforms, four sensory panels – three of which feature wheels that emit colourful light when set in motion, and one with transparent grass-shaped windows, among other elements.The structure is manufactured from S235 steel protected against corrosion through galvanization and powder coating. The transparent decorative elements – flowers and leaves – are made of 15 mm thick HDPE and plexiglass. The slide is made of 1.5 mm thick stainless steel, with side panels made of 15 mm thick HDPE. The equipment complies with the EN 1176 standard.

• 20 structural tubes
• transparent decorative elements: 8 flowers (48 pink petals) and 8 green leaves
• 5 towers with platforms
• 1 straight slide
• 1 fireman’s pole
• 1 chain bridge with four cube-shaped stepping platforms
• 1 rope climbing net
• 7 honeycomb-shaped climbing ladders
• 2 panels with a transparent window, decorative elements (watering can and flowers), and wheels that emit colourful light when set in motion (5 blue wheels)
• 1 panel with 4 transparent grass-shaped windows
• 1 panel with flower-shaped cut-outs and wheels that emit colourful light when set in motion (5 green wheels)
• 1 rope passage between the platforms (4 ropes with 8 stepping discs)

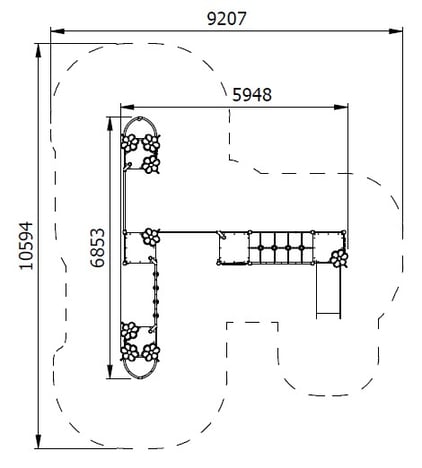

• Dimensions (LxWxH): 5,95 x 6,86 x 3,98 m
• Safety area (LxW): 9,21 x 10,6 m
• Maximum fall height: 1,92 m
• Age group: 3+
• Number of users: 23
• Dimensional tolerance: ±5%

• Structure made of galvanized and powder-coated S235 steel, with tubes measuring 76.1 mm in diameter and 2 mm in wall thickness,
• Flowers and leaves made of 15 mm thick HDPE and 3 mm thick fluorescent plexiglass. The leaf features 8 mm thick tinted plexiglass,
• Watering can panel made of 15 mm thick HDPE, with a central window made of 5 mm thick transparent polycarbonate featuring LUMO illuminated wheels,
• Grass panel made of 15 mm thick HDPE, with a central window made of 8 mm thick tinted plexiglass,
• Panel with milled flower shapes made of 15 mm thick HDPE with LUMO illuminated wheels,
• Black platforms made of 10 mm thick HPL Hexa,
• Entrance ladders (honeycomb-shaped) made of S235 steel, 30 × 30 mm, with a wall thickness of 2 mm, powder-coated,
• Climbing rope net made of reinforced black polypropylene rope, 16 mm in diameter, with plastic and aluminium connectors. The ropes are UV-resistant and flame-retardant,
• Bridge between the platforms made of 10–12 mm thick EPDM rubber, with 6 cube-shaped openings finished with panels; reinforced black polypropylene ropes, 16 mm in diameter, with aluminium connectors,
• Steel handrails, 33.7 mm in diameter and 2 mm in wall thickness,
• Slide made of 1.5 mm thick stainless steel sheet, with side panels made of 15 mm thick HDPE,
• Rope passage between the platforms made of 16 mm diameter reinforced polypropylene ropes and 15 mm thick HDPE stepping discs.

All imager are for illustartive purposes only and may vary from the actual product.
