Playset FLORO 2-1

Code | 01-FL-721

Slide 1 of 3

Product features

Inter Play Studio

Design Your Playground

Download files

Technical data sheet

PDFDOC

Technical drawings

PDFDWG

3D Models

DWG3DSSKPOBJFBX

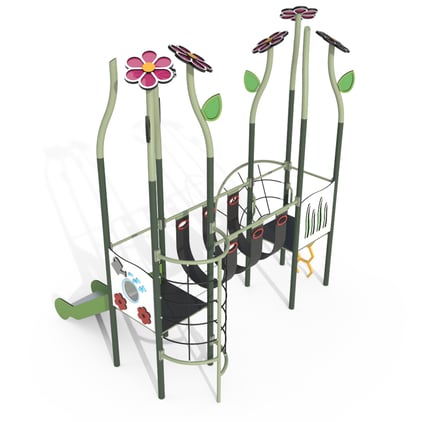

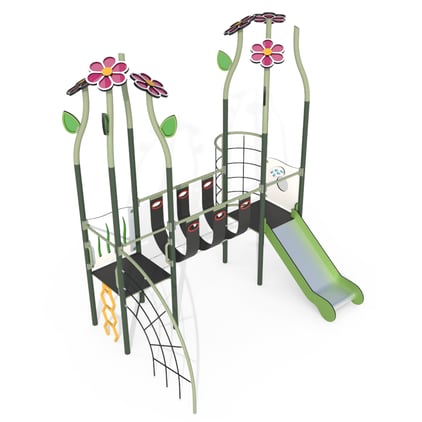

FLORO 2-1 Playset is a modern nature-inspired playground structure that combines attractive design with high functionality and durability. Its distinctive decorative flowers and leaves, made of colorful transparent elements, create impressive sunlight effects, giving the playset a unique appearance and creating a welcoming, vibrant play environment for parks, kindergartens, residential developments, and modern recreational areas. The playset includes, among other features, two towers with platforms connected by a bridge, a slide, two rope climbing nets, a honeycomb-shaped climbing ladder, and two activity panels featuring plant-themed decorations, transparent windows, and spinning discs that emit colorful light effects when set in motion. The structure is manufactured from S235 steel protected against corrosion through galvanization and powder coating. The equipment complies with the EN 1176 playground safety standard.

  • 8 structural support posts
  • Transparent decorative elements: 6 flowers (36 pink petals) and 6 green leaves
  • 2 towers with platforms
  • 1 bridge
  • 5 handles
  • 2 rope climbing nets
  • 1 straight slide
  • 1 honeycomb-shaped climbing ladder
  • 1 panel with a transparent window and decorative elements (watering can and flowers), including 5 illuminated blue circles
  • 1 panel with 4 transparent windows in the shape of grass blades

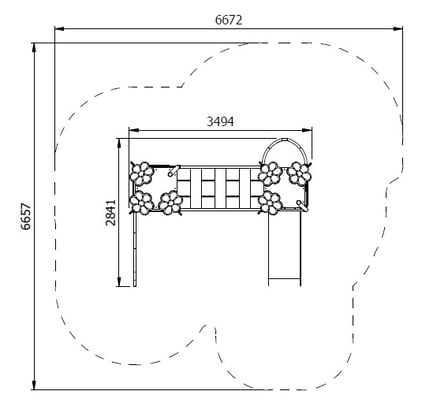

  • Dimensions (LxWxH): 3,5 x 2,85 x 3,98 m
  • Safety area (LxW): 6,68 x 6,66 m
  • Maximum fall height: 1,7 m
  • Age group: 3+
  • Number of users: 8
  • Dimensional tolerance: ±5%
  • Structure made of galvanized and powder-coated S235 steel, using tubes with a diameter of 76.1 mm and a wall thickness of 2 mm.
  • Flowers and leaves made of 15 mm thick HDPE and 3 mm thick fluorescent acrylic (plexiglass) panels. The leaf element includes 8 mm thick tinted acrylic.
  • Entry steps with a milled pattern made of 15 mm thick HDPE; support post made of galvanized and powder-coated S235 steel with a diameter of 76.1 mm and a wall thickness of 2 mm.
  • Side panel made of 15 mm thick HDPE, with a central transparent polycarbonate window 5 mm thick.
  • Black platform made of 10 mm thick HPL Hexa panel.
  • Slide made of 1.5 mm thick stainless steel sheet with side walls made of 15 mm thick HDPE.
  • Climbing ramp made of EPDM rubber with a thickness of 10–12 mm.

All imager are for illustartive purposes only and may vary from the actual product.
