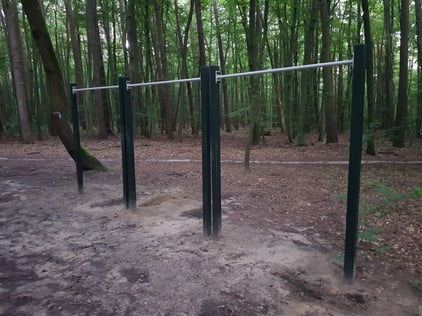

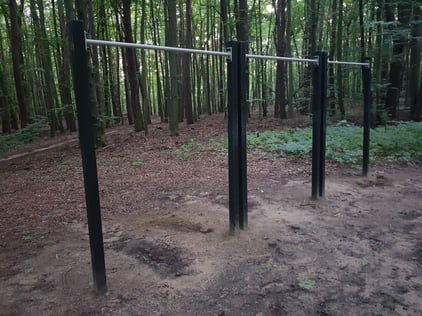

Horizontal bar intended for users over 140 cm tall. The structure is made of galvanized and powder coated steel. Training on the bar strengthen muscles of the chest, back, arms, shoulders and abdomen. It also affects the sense of balance and improves motor coordination.

  • Dimensions (LxWxH): 1,60 x 0,08 x 2,50 m
  • Safety area (LxW): 4,60 x 3,08 m
  • Freefall height: 1,40 m
  • Number of users: 1
  • Height of the bar: 2,40 m
  • Length of bar: 1,24 m
  • User’s maximum weight: 150 kg
  • A certificate confirming compatibility with norm EN 16630
  • Differences in dimensions no more than +/- 5% are acceptable
  • Galvanized and powder painted steel - the devices are painted in green (RAL 6013) and grey (RAL 9006). On request other RAL colors may be used.
  • Construction post with square profile 80x80 mm (thickness 3 mm),
  • Rounded profile bar with diameter 33,7 mm
  • Screws covered by polymer caps.

All images are for illustration purpose only and may vary from the actual product.
