Climbing net RETO 3100

Description

Slope access with climbing net RETO H3100 is a modern addition to recreational spaces, designed to encourage active play on varied terrain elevations. The structure is based on six steel posts, galvanized and powder-coated, with a pipe diameter of 76.1 mm and a wall thickness of 2 mm. A durable rope net made of polypropylene with a steel core (reinforced) is installed between the posts. Rope connectors are made of polyamide. The net allows children to safely ascend the slope, supporting the development of coordination and balance, while the fixing system ensures long-lasting durability and user safety. The slope access integrates naturally with the surrounding landscape, creating a functional and visually appealing element of modern recreational areas.

Playground device consists of

• 6 structural posts
• 1 climbing net

Product details

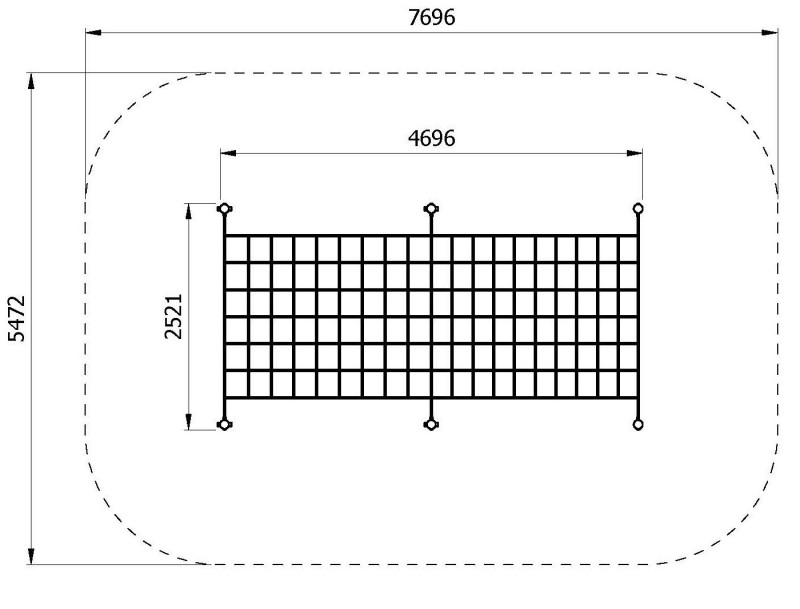

• Dimensions (LxWxH): 4,7 x 2,52 x 3,5 m
• Safety area (LxW): 7,7 x 5,47 m
• Maximum fall height: 0,61 m

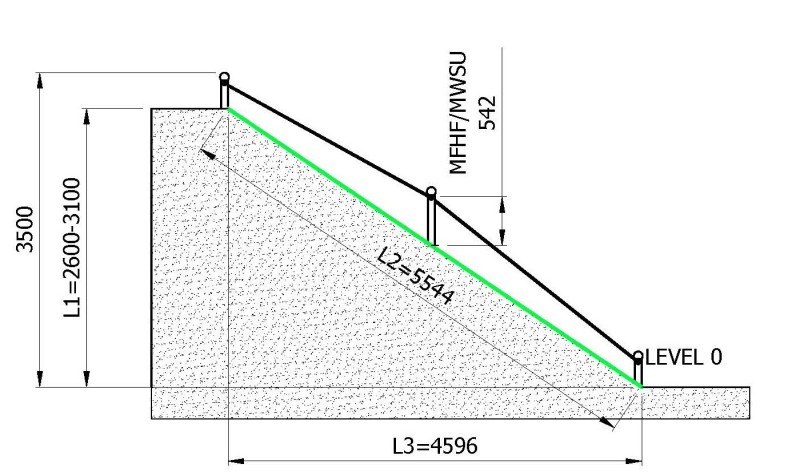

• Embankment height (L1): 3100 mm
• Embankment length (L2): 5544 mm
• Embankment width (L3): 4596 mm
• Age: 2+
• Number of users: 28
• Differences in dimensions no more than +/- 5% are acceptable

Materials

• The structure is made of S235 steel, hot-dip galvanized and powder-coated, with pipes of 76.1 mm diameter and 2 mm wall thickness.
• Climbing net: 16 mm polypropylene rope with a steel core (reinforced).
• Rope connectors made of polyamide.

All images are for illustrative purposes only and may vary from the actual product.
