    TRIPLE TWISTER

    Code: KS-FD-008

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    Description

    The Triple Twister outdoor gym device develops the upper body muscles, slimming the waist, strengthens core muscles. Improves flexibility, coordination and balance.

    To do exercise place your feet on the step, grab the handle with your hands. Using leg and hip muscles twist the body to the sides. Do not let go of the handrails during the exercise. Keep your back upright.

    Product details

    • Dimensions (LxWxH): 1,77 x 1,77 x 1,25 m
    • Safety zone: 4,43 x 4,65 m
    • The number of anchors: 1
    • Certificate confirming compatibility with norm EN 16630

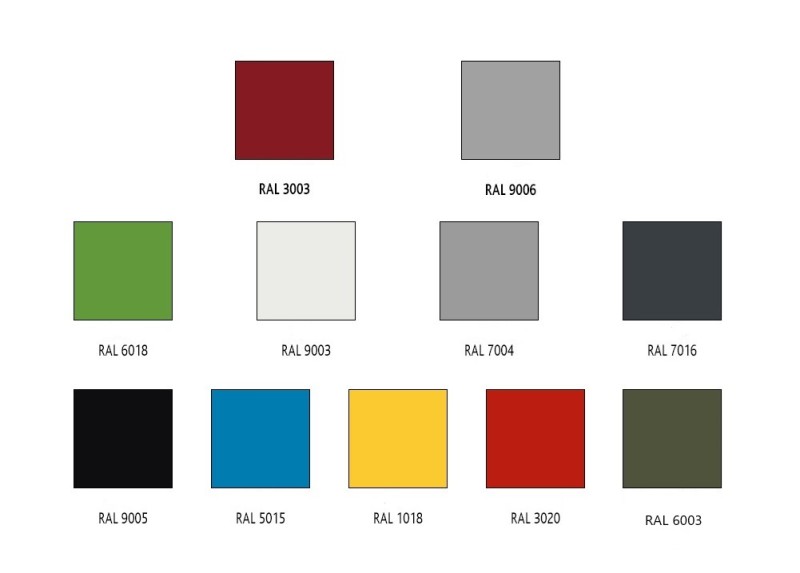

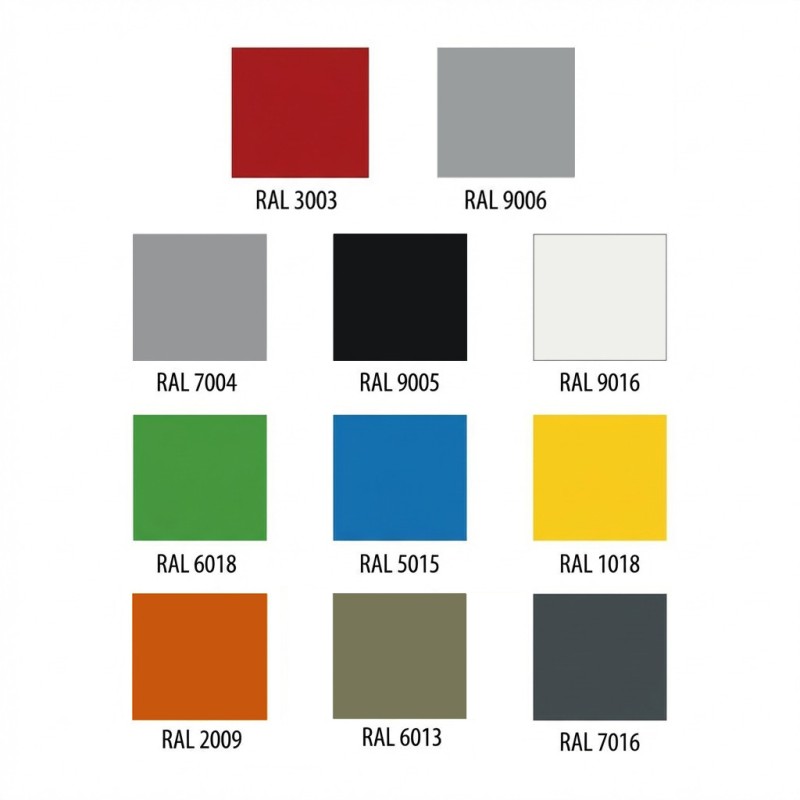

    • Device can be painted in any colour from the RAL palette

    Materials

    • Construction is made of powder painted steel protected against corrosion.
    • Steps are made of aluminium.
    • Handles are made of pipe ended with rounded decorative elements and profiled to ensure ergonomics and user safety.
    • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain / repair.
    • Device is mounted on a supporting pole, that is attached to the ground by flange.
    • Flange is screwed with M16 screws into anchor fixed in the concrete. M16 anchoring nuts are secured against unscrewing.

    Differences in dimensions no more than +/- 5% are acceptable.

    Presented drawing should be treated as illustrative. It may be slightly different from the actual product.
